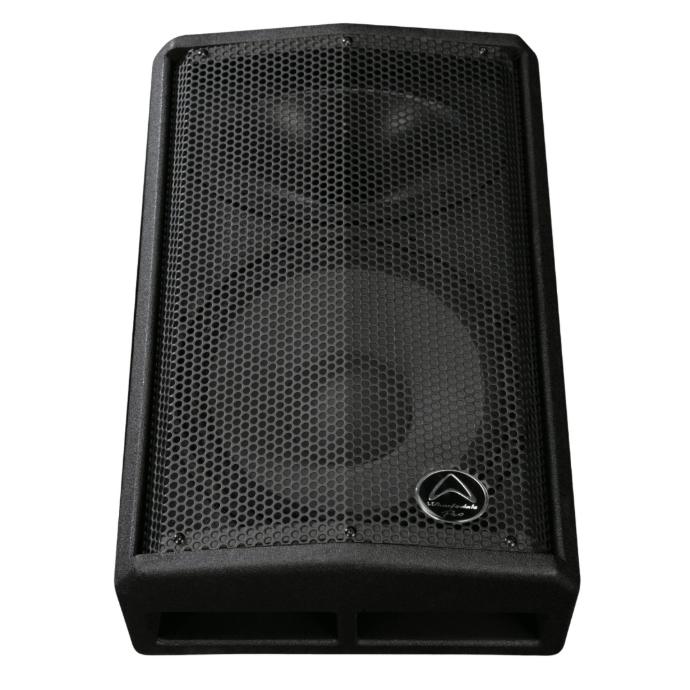

DVP-AX12M is a 12″ bi-amplified active floor monitor from our DVP-AX Series — engineered to deliver clear, high-volume stage monitoring with precision control and rugged reliability.
Powered by Class D amplification delivering 250 W continuous (500 W peak), DVP-AX12M combines a dual-layer LF driver with a 2.5″ voice coil and a 1.75″ IRIS-X HF compression driver. This pairing delivers articulate vocal clarity and punchy low-end response, with a 90° x 60° dispersion optimised for stage positioning.
A built-in 7-band graphic EQ allows performers or engineers to fine-tune the response and achieve maximum gain before feedback in demanding live environments. The inclusion of a powered output enables connection to an additional passive loudspeaker, extending monitoring capability without extra amplification.
DVP-AX12M delivers up to 129 dB max SPL @ 1 m, making it a reliable stage companion for vocalists, musicians, and engineers who need confident, consistent performance show after show.
DVP-AX12M — control, clarity, and stage-ready power in a compact monitor format.
| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Floor Monitor |
| Configuration | 2-way |
| System Continuous Power | 250 W |
| System Peak Power | 500 W |
| Max SPL @ 1m | 129 dB |
| Freq Range (-10 dB) | 55 Hz - 20 KHz |
| Freq Response (+/-3 dB) | 60 Hz - 18 KHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 300 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75″ |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1″ |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 60° |
| Input Connector | 2 x XLR & 2 x 1/4″ (Line/MIC) |
| Waveguide Type | Elliptical |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black |
| Finish | Black Paint |
| Handles | 2 |
| Deployment | Ground |
| Pole Mount | None |
| Sensitivity 2.83v / 1m | n/a dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.2 KHz |
| Recommended HPF = BW 18 dB/OCT. | 45 Hz |
| Amplifier design | Class D |
| EQ Type | 7-band EQ |
| Active loudspeaker Input Impedance | Balanced: 20 K |
| Link Connector | pin XLR |
| Input sensitivity | 775 mv |
| Max input level | 6 v |
| Line output | XLR (Balanced Out) |
| Main Power | 220-240 V 50/60 Hz |
| Power Supply | SMPS |
| Included Accessory | User Manual, AC Cable |
| Unpacked - Height (mm) | 428 |
| Unpacked - Width Front (mm) | 359 |
| Unpacked - Width Rear (mm) | 359 |
| Unpacked - Depth (mm) | 537 |
| Packed - Height (mm) | 396 |
| Packed - Width Front (mm) | 396 |
| Packed - Width Rear (mm) | 573 |
| Packed - Depth (mm) | 448 |
| Weight - Nett (kg) | 18.5 |
| Weight - Gross (kg) | 21.4 |
