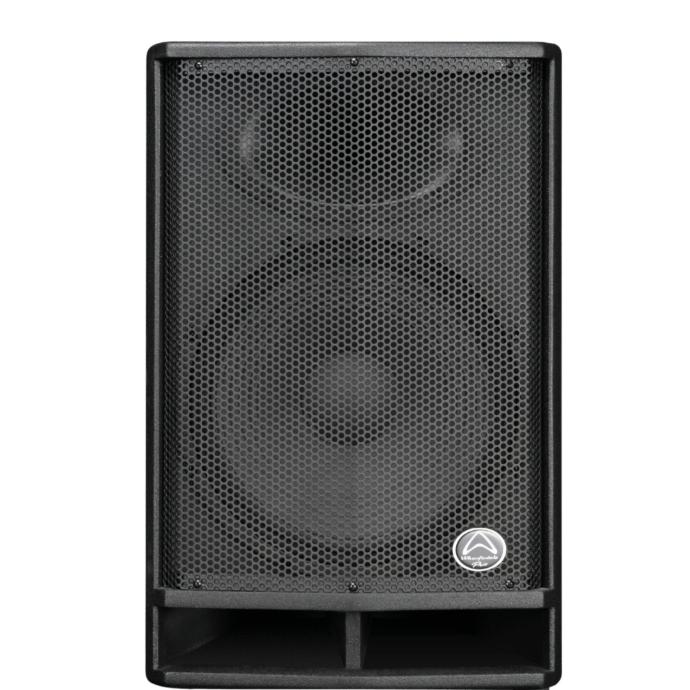

DVP-AX15 is a 15″ bi-amplified active loudspeaker from our DVP-AX Series — built for performers, DJs, and rental providers who need powerful full-range output with built-in control and road-ready reliability.
Delivering 400 W continuous (800 W peak) power through Class D amplification, DVP-AX15 pairs a custom Wharfedale Pro 15″ LF driver with a 2.5″ voice coil and a 1.75″ IRIS-X HF compression driver. The result is commanding low-end presence and clear, defined highs across a 90° x 60° dispersion pattern, ideal for both FOH and stage use.
A 6-position internal DSP provides tailored voicing presets to match real-world performance environments, offering quick optimisation for speech, live music, playback, or bass-enhanced scenarios without external processing.
With a maximum SPL of 130 dB @ 1 m, rugged cabinet construction, and full touring practicality, DVP-AX15 combines power, clarity, and durability for demanding live applications.
DVP-AX15 — high-output active performance with intelligent DSP control.
| Active or Passive | Active |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 400 W |
| System Peak Power | 800 W |
| Max SPL @ 1m | 130 dB |
| Freq Range (-10 dB) | 45 Hz - 20 KHz |
| Freq Response (+/-3 dB) | 50 Hz - 18 KHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 15" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 350 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75″ |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1″ |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 60° |
| Input Connector | 2 x XLR & 2 x 1/4″ (Line/MIC) |
| Waveguide Type | Elliptical |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black |
| Finish | Black Paint |
| Handles | 2 |
| Deployment | Pole |
| Pole Mount | Dual Angle (0° / 10°) 35 mm |
| Sensitivity 2.83v / 1m | n/a dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.2 KHz |
| Recommended HPF = BW 18 dB/OCT. | 45 Hz |
| Amplifier design | Class D |
| Preset list | Flat / Monitor / Speech / Bass / Punch / Live |
| Active loudspeaker Input Impedance | Balanced: 20 K |
| Link Connector | pin XLR |
| Input sensitivity | 775 mv |
| Max input level | 4 v |
| Line output | Switchable LOOP/MIX Balanced Socket XLR |
| DSP Controls | Flat / Monitor / Speech / Bass / Punch / Live |
| Main Power | 220-240 V 50/60 Hz |
| Power Supply | SMPS |
| Included Accessory | User Manual, AC Cable |
| Unpacked - Height (mm) | 689 |
| Unpacked - Width Front (mm) | 443.5 |
| Unpacked - Width Rear (mm) | 243.5 |
| Unpacked - Depth (mm) | 429 |
| Packed - Height (mm) | 750 |
| Packed - Width Front (mm) | 520 |
| Packed - Width Rear (mm) | 290 |
| Packed - Depth (mm) | 485 |
| Weight - Nett (Kg) | 23.8 |
| Weight - Gross (Kg) | 27.3 |
