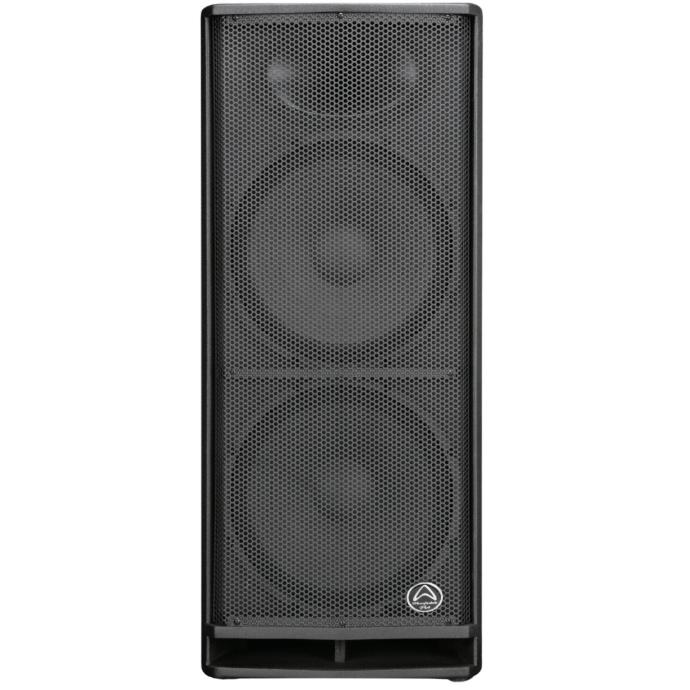

DVP-AX215 is a dual 15″ two-way bi-amplified active loudspeaker from our DVP-AX Series — delivering powerful full-range performance with the extended low-frequency punch required for high-energy live sound and DJ applications.
Driven by Class D amplification delivering 570 W continuous (1140 W peak) power, DVP-AX215 combines dual custom Wharfedale Pro LF drivers with 2.5″ voice coils and a 1.75″ IRIS X HF compression driver to produce a commanding, full-bodied sound. With 90° x 60° dispersion and a maximum SPL of 133 dB @ 1 m, it ensures consistent coverage across large audience areas.
The integrated 6-position DSP allows quick adaptation to different acoustic environments and program types, providing reliable results with minimal setup time. Built for touring and installation, the enclosure delivers strength, portability, and performance confidence in demanding professional environments.
DVP-AX215 — for those who need more power, more presence, and more low-end authority.
| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 570 W |
| System Peak Power | 1140 W |
| Max SPL @ 1m | 133 dB |
| Freq Range (-10 dB) | 40 Hz - 20 KHz |
| Freq Response (+/-3 dB) | 45 Hz - 18 KHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 15" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 2 x 8 Ω |
| LF Power (RE:AES2-2012) | 2 x 350 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75″ |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1″ |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 60° |
| Input Connector | 2 x XLR & 2 x 1/4″ (Line/MIC) |
| Waveguide Type | Elliptical |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black |
| Finish | Black Paint |
| Handles | 2 |
| Deployment | Ground |
| Pole Mount | None |
| Sensitivity 2.83v / 1m | n/a dB |
| System Rated Impedance | n/a |
| Recommended HPF = BW 18 dB/OCT. | 40 Hz |
| Amplifier design | Class D |
| DSP Controls | Flat / Monitor / Speech / Bass / Punch / Live |
| Preset list | Flat / Monitor / Speech / Bass / Punch / Live |
| Active loudspeaker Input Impedance | Balanced: 20 K |
| Link Connector | pin XLR |
| Input sensitivity | 775 mv |
| Max input level | 4 v |
| Line output | Switchable LOOP/MIX Balanced Socket XLR |
| Main Power | 220-240 V 50/60 Hz |
| Power Supply | SMPS |
| Included Accessory | User Manual, AC Cable |
| Unpacked - Height (mm) | 1058 |
| Unpacked - Width Front (mm) | 444.5 |
| Unpacked - Width Rear (mm) | 245.3 |
| Unpacked - Depth (mm) | 429 |
| Packed - Height (mm) | 1125 |
| Packed - Width Front (mm) | 520 |
| Packed - Width Rear (mm) | 290 |
| Packed - Depth (mm) | 496 |
| Weight - Nett (kg) | 34.3 |
| Weight - Gross (kg) | 38.7 |
