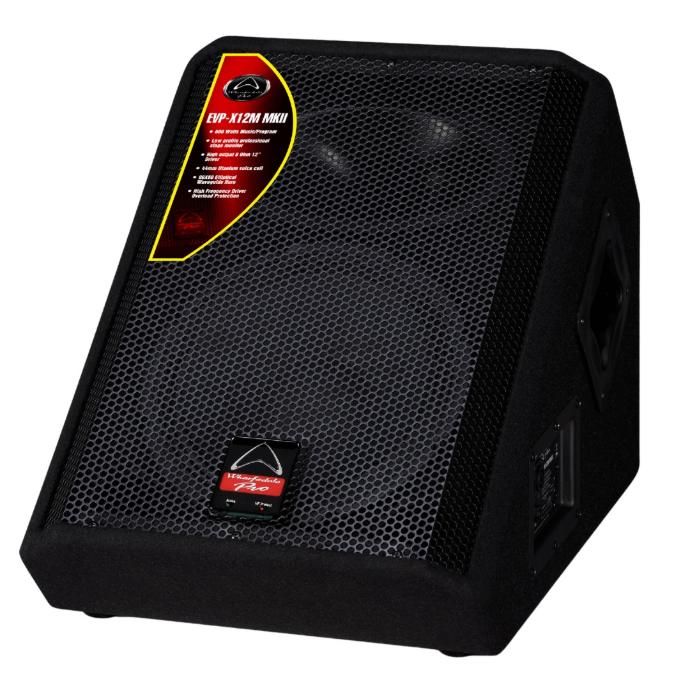

Wharfedale Pro - EVP-X12M MKII 12" Passive floor monitor
WHA-EVP-X12M
EVP-X12M MKII is a 12″ floor monitor from our hardworking EVP-X MKII Series — built to provide clear, punchy on-stage monitoring for vocalists, musicians and DJs who demand reliability and performance.
Equipped with a custom Wharfedale Pro 12″ LF driver with a 2.0″ voice coil and a 1.75″ HF compression driver, it delivers focused sound with clarity and definition across the full frequency range. Handling 300 W AES (600 W programme / 1200 W peak) and reaching 129 dB max SPL @ 1 m, EVP-X12M MKII ensures powerful stage monitoring even in high-volume environments.
A 90° x 60° elliptical waveguide provides controlled HF dispersion for consistent coverage across performance areas. When additional brightness is needed, the onboard +3 dB HF boost switch offers instant tonal lift.
Designed for life on stage, EVP-X12M MKII is protected by a durable carpet finish and steel grille, with rubberised 4-way carry handles for easy transport and setup. 4 pole speaker connectors and 1/4″ jack inputs ensure flexible connectivity.
A rugged, dependable stage monitor that keeps performers locked into the mix with power, clarity, and confidence.
| Active or Passive | Passive |
| System Type | Floor Monitor |
| Configuration | 2-way |
| System Continuous Power | 300 W |
| System Programme Power | 600 W |
| System Peak Power | 1200 W |
| Max SPL @ 1m | 129 dB |
| Freq Range (-10 dB) | 55 Hz - 20 kHz |
| Freq Response (+/-3 dB) | 60 Hz - 20 kHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| LF Voice Coil Size | 2" |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 300 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1" |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 60° |
| Preset | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector / 2 x 1/4" Jacks |
| Waveguide Type | Elliptical |
| Enclosure Material | Particle Board |
| Grille Material and Finish | Steel Black |
| Finish | Black Carpet |
| Handles | 2 |
| Deployment | Ground |
| Pole Mount | None |
| Sensitivity 2.83v / 1m | 98 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 2.4 kHz |
| Recommended HPF = BW 18 dB/OCT. | 55 Hz |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 560 |
| Unpacked - Width Front (mm) | 424 |
| Unpacked - Width Rear (mm) | 424 |
| Unpacked - Depth (mm) | 441 |
| Packed - Height (mm) | 480 |
| Packed - Width Front (mm) | 616 |
| Packed - Width Rear (mm) | 616 |
| Packed - Depth (mm) | 490 |
| Weight - Nett (kg) | 17.96 |
| Weight - Gross (kg) | 20.56 |
