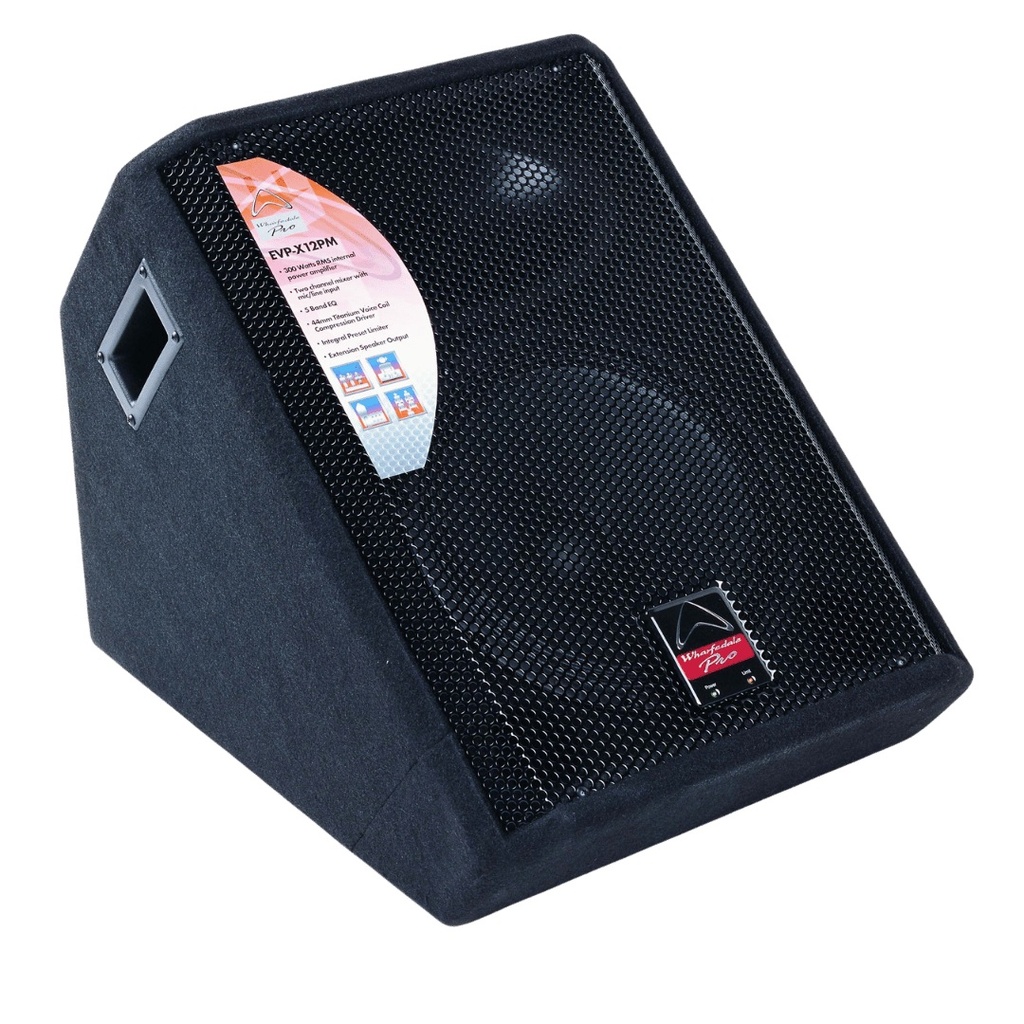

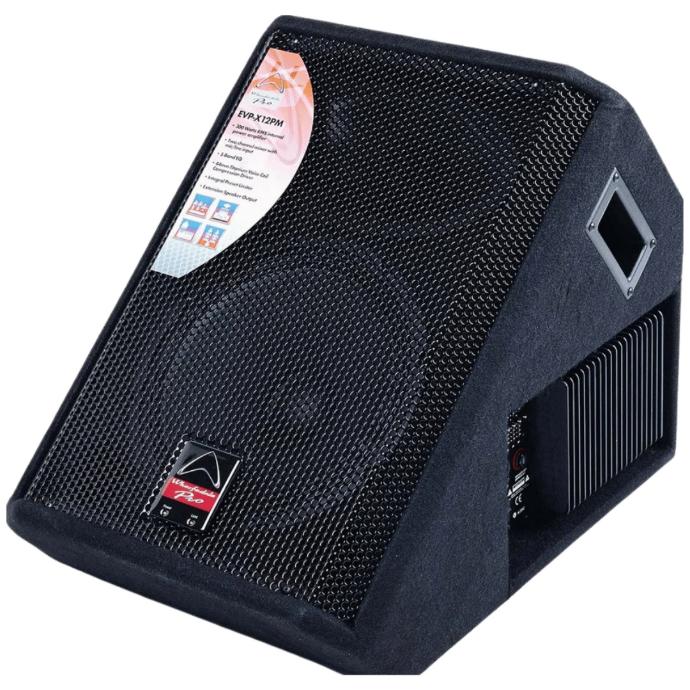

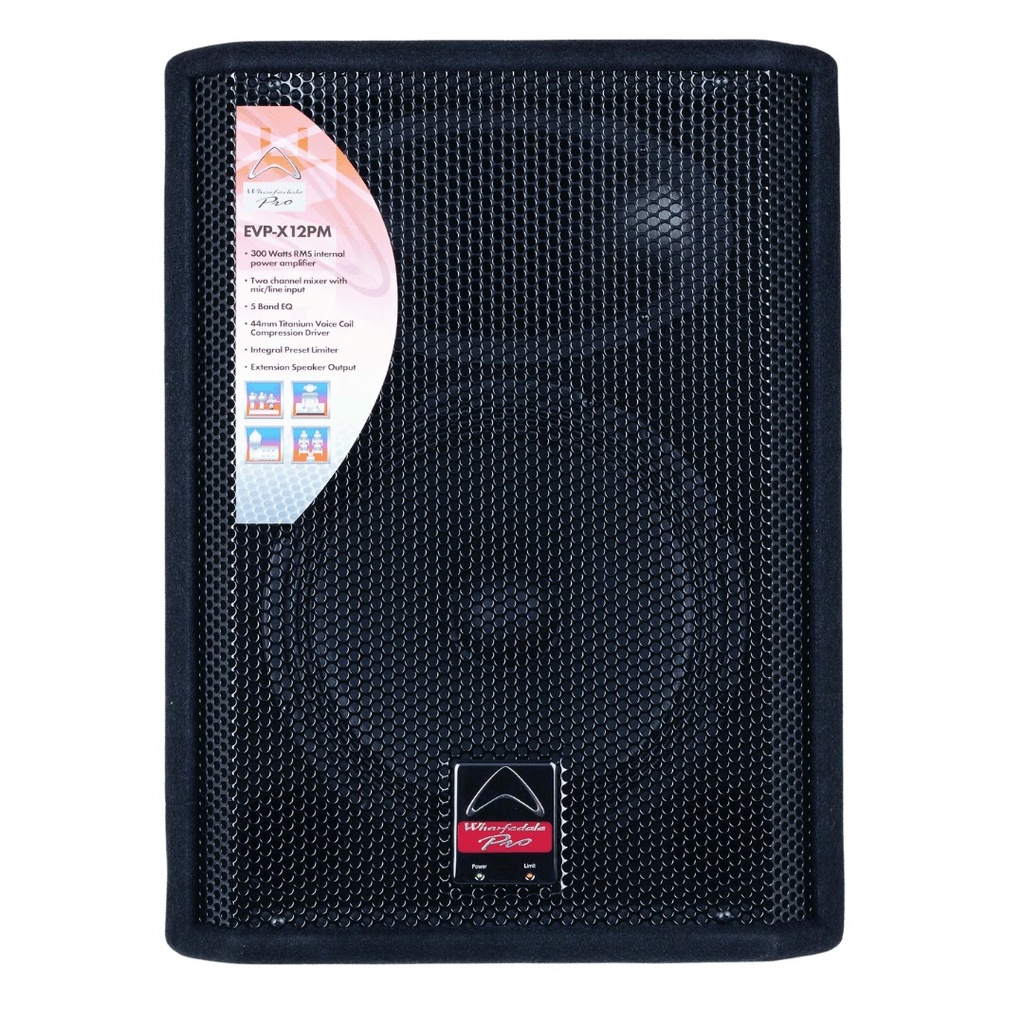

EVP-X12PM is a 12″ bi-amplified active floor monitor from our EVP-X PM Series — designed for maximum versatility, easy on-stage setup, and powerful, controlled monitoring performance.
Unlike conventional PA speakers repurposed as wedges, EVP-X12PM is purpose-built as a stage monitor, combining internal Class D amplification with a practical 5-band graphic EQ for fast, precise tonal shaping directly on stage. Its 12″ LF driver and 1.75″ titanium diaphragm HF compression driver deliver clear, punchy sound with a smooth response that cuts through stage mixes with clarity.
EVP-X12PM features a combi XLR/jack balanced input for flexible connectivity and an XLR output for linking additional units. A unique powered speaker output allows direct connection to a passive secondary monitor — such as the EVP-X15M MKII — without additional amplification.
Protected by a durable black carpet finish and backed by internal ProTech™ driver safeguarding and AGC circuitry, EVP-X12PM is built to perform at high levels consistently and reliably.
With 300 W continuous (500 W peak) power, EVP-X12PM is the ideal solution for performers who need dependable, stage-ready monitoring with minimal setup and maximum control.
| Active or Passive | Active |
| System Type | Floor Monitor |
| Configuration | 2-way |
| System Continuous Power | 300 W |
| System Peak Power | 500 W |
| Max SPL @ 1m | 129 dB |
| Freq Range (-10 dB) | 45 Hz - 20 kHz |
| Freq Response (+/-3 dB) | 50 Hz – 20 KHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| LF Voice Coil Size | 2" |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 300 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75″ |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1" |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 60° |
| Input Connector | 1/4” jack / XLR combo |
| Enclosure Material | Particle Board |
| Grille Material and Finish | Steel Black |
| Finish | Black Carpet |
| Handles | 2 |
| Deployment | Ground |
| Sensitivity 2.83v / 1m | n/a dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.4 kHz |
| Recommended HPF = BW 18 dB/OCT. | 45 Hz |
| Amplifier design | Class D |
| EQ Type | 5-Band EQ |
| Line output | Balanced Pin XLR connector |
| Main Power | AC 220-240 V~50 Hz 400W |
| Included Accessory | User Manual, AC Cable |
| Unpacked - Height (mm) | 560 |
| Unpacked - Width Front (mm) | 424 |
| Unpacked - Width Rear (mm) | 424 |
| Unpacked - Depth (mm) | 441 |
| Weight - Nett (kg) | 22.5 |
| Weight - Gross (kg) | 25.1 |
