IP54 Certified
Installation, DJs, bands and performance
Wharfedale Pro drivers

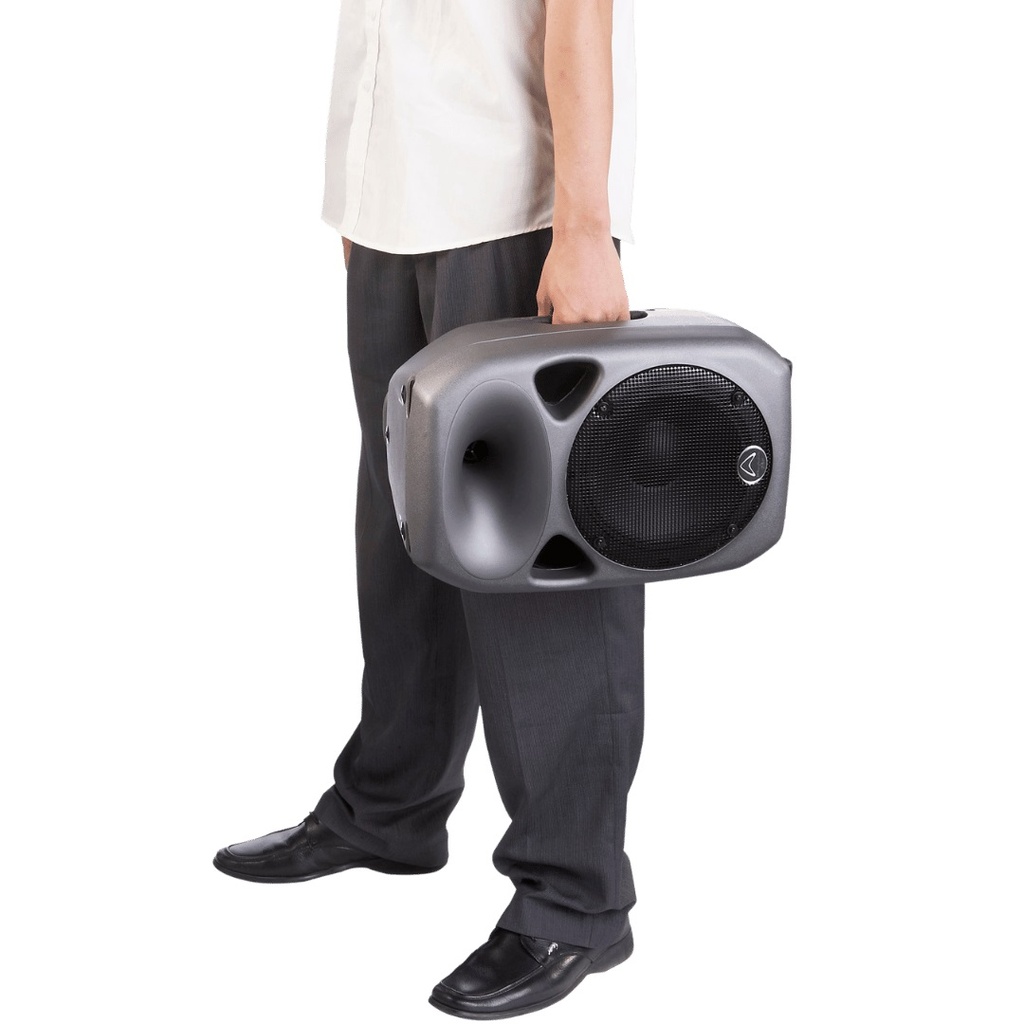

Portable and powerful
8 x M6 rigging points

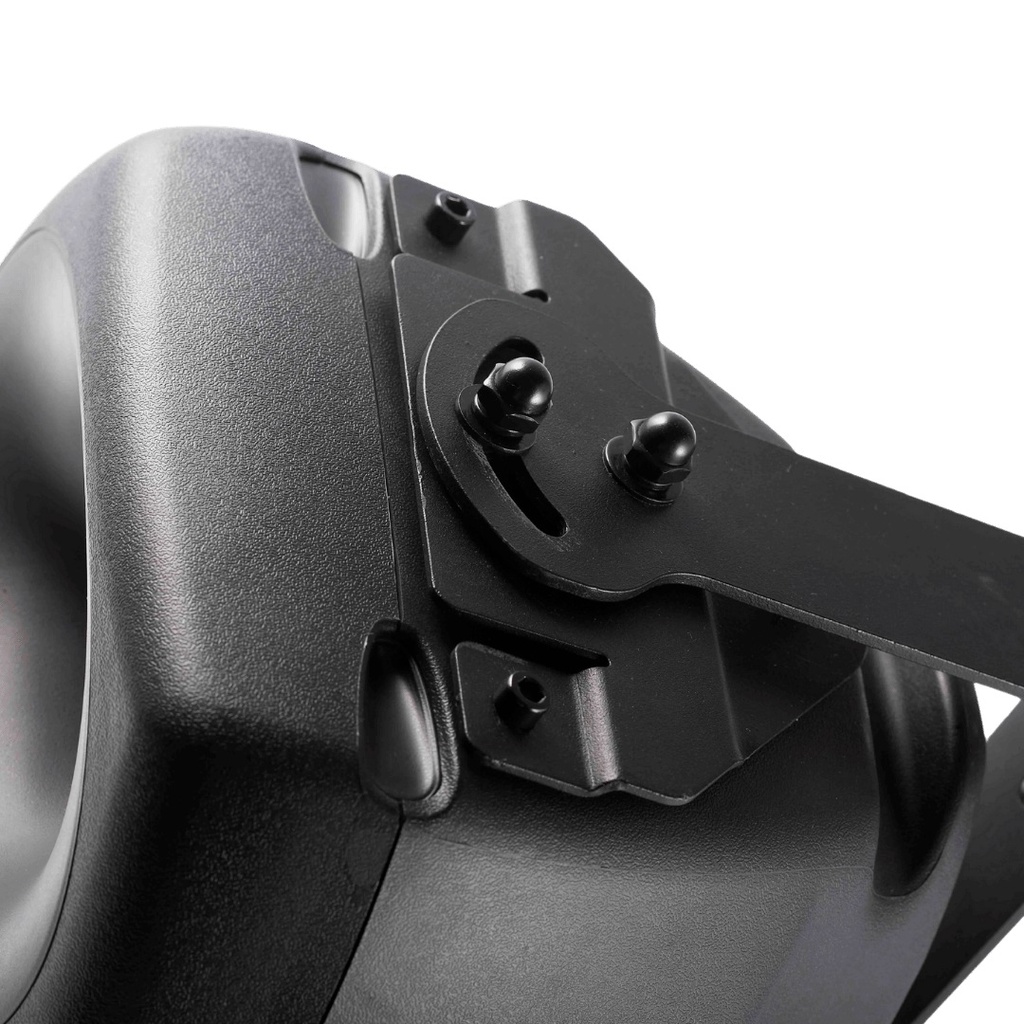

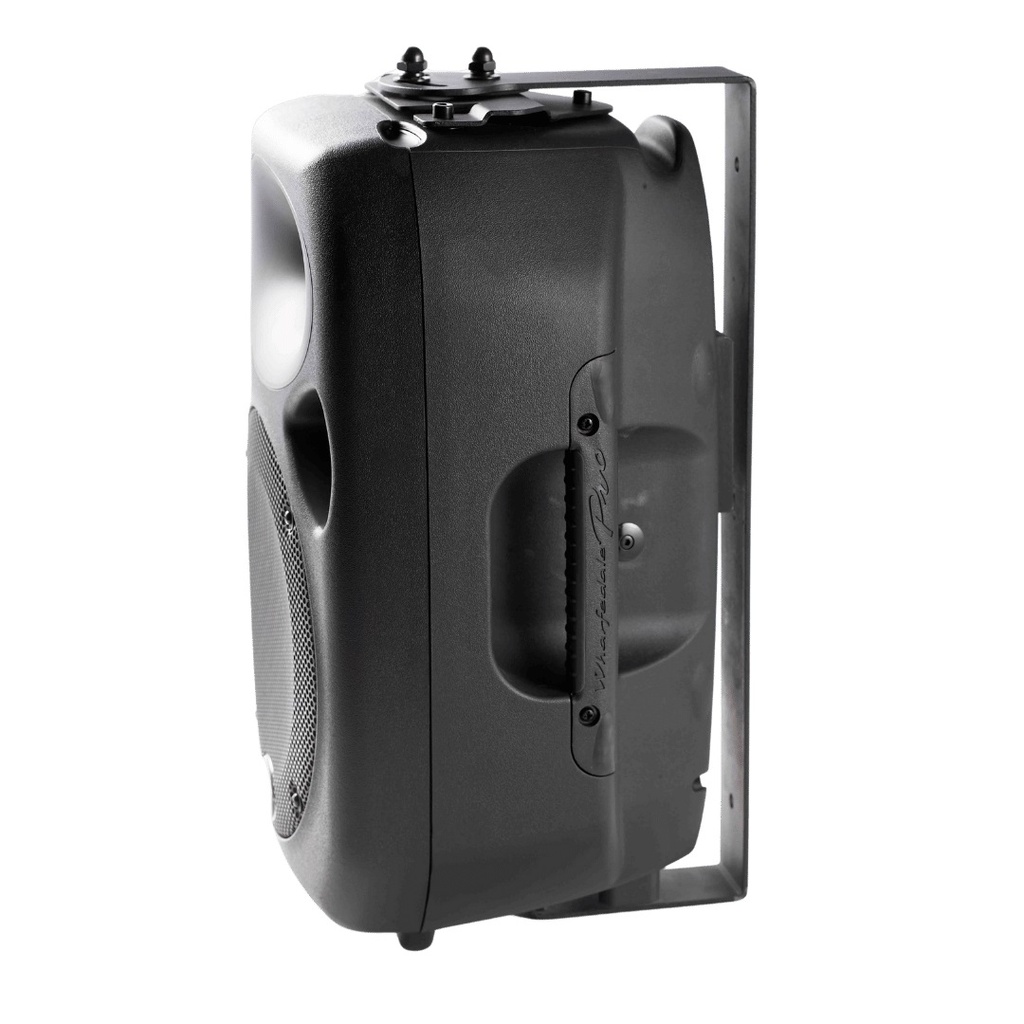

Optional wall brackets
Optional tour bags
Versatile !
| Active or Passive | Passive |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 150 W |
| System Programme Power | 300 W |
| System Peak Power | 600 W |
| Max SPL @ 1m | 124 dB |
| Freq Range (-10 dB) | 65 Hz - 20 kHz |
| Freq Response (+/-3 dB) | 70 Hz - 20 kHz |
| IP Certification | IP54 |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 8" |
| LF Voice Coil Size | 1.53 |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 150 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1" |
| HF Diaphragm Material | Mylar |
| HF Exit Size | 1.2" |
| HF Power (RE:AES2-2012) | 20 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 60° |
| Preset | Yes |

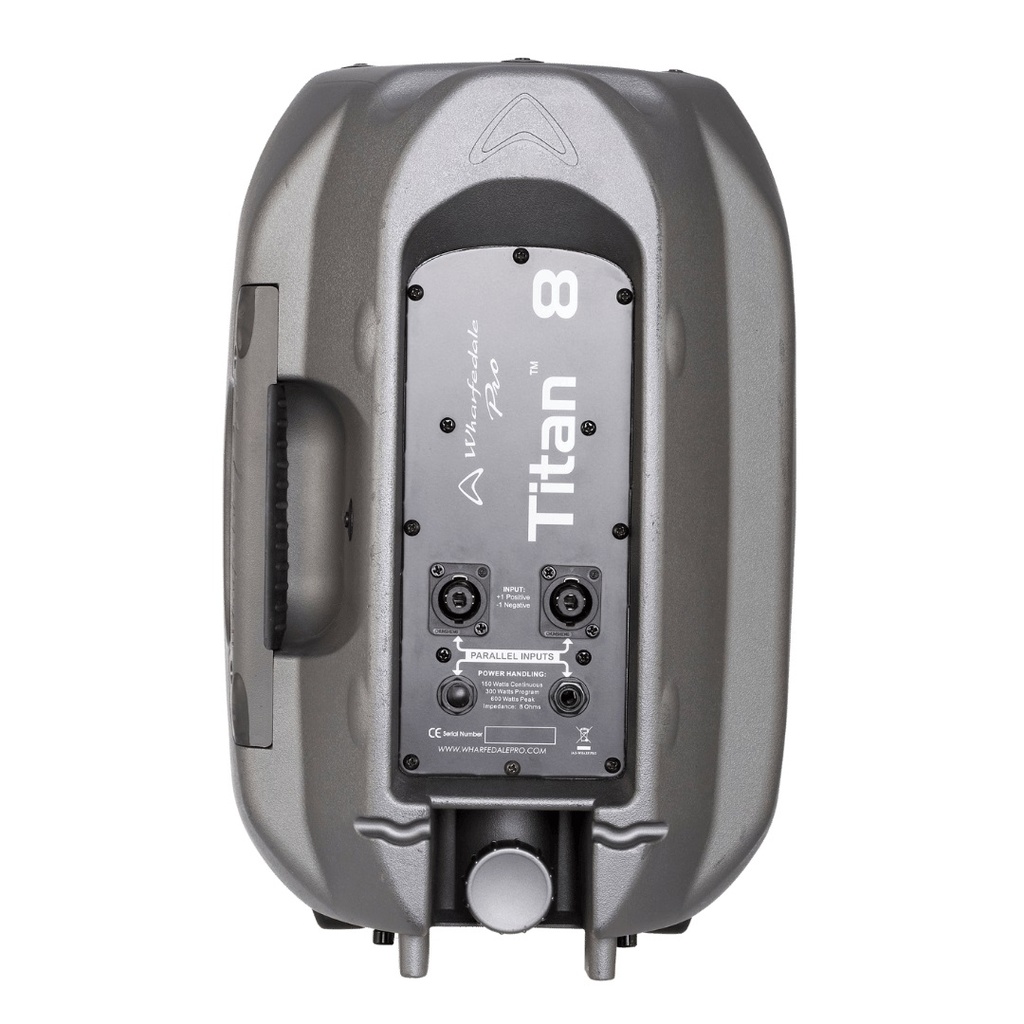

| Input Connector | 2 x 4 Pole Speaker Connector / 2 x 6.3mm jacks |
| Waveguide Type | Elliptical |
| Enclosure Material | Polypropylene |
| Grille Material and Finish | Steel, Black, Grey, White |
| Finish | Black, Grey or White Polypropylene |
| Handles | 1 |
| Deployment | Flying, Pole, Wall Mount, Ground |
| Pole Mount | 35 mm |
| Rigging | Yes |
| M6 | 8 |
| Sensitivity 2.83v / 1m | 96 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 2-way 2.4 kHz / Linkwitz-Riley |
| Recommended HPF = BW 18 dB/OCT. | 65 Hz |
| Included Accessory | Quick Start Guide, Dust cover |
| Unpacked - Height (mm) | 396 |
| Unpacked - Width Front (mm) | 266 |
| Unpacked - Width Rear (mm) | 266 |
| Unpacked - Depth (mm) | 221 |
| Packed - Height (mm) | 463 |
| Packed - Width Front (mm) | 325 |
| Packed - Width Rear (mm) | 325 |
| Packed - Depth (mm) | 282 |
| Weight - Nett (kg) | 5.5 |
| Weight - Gross (kg) | 7.5 |
