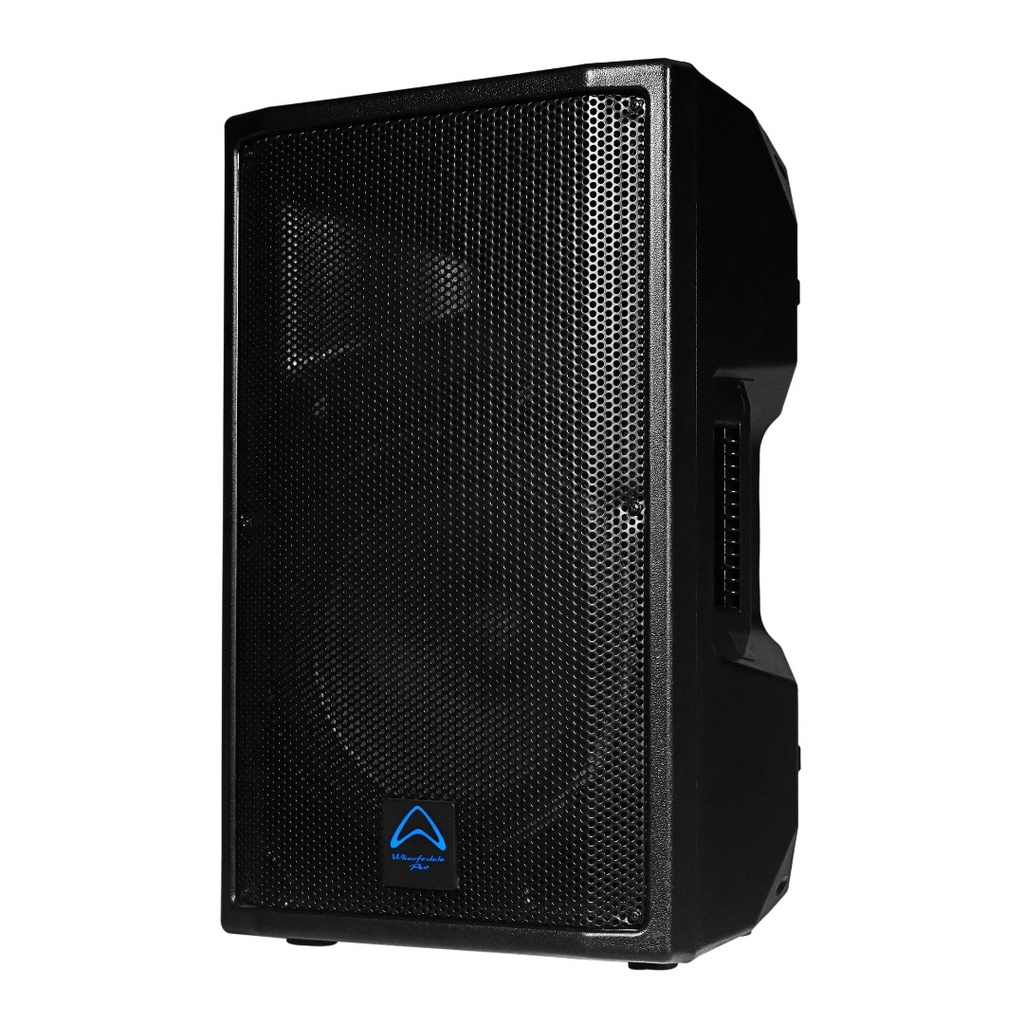

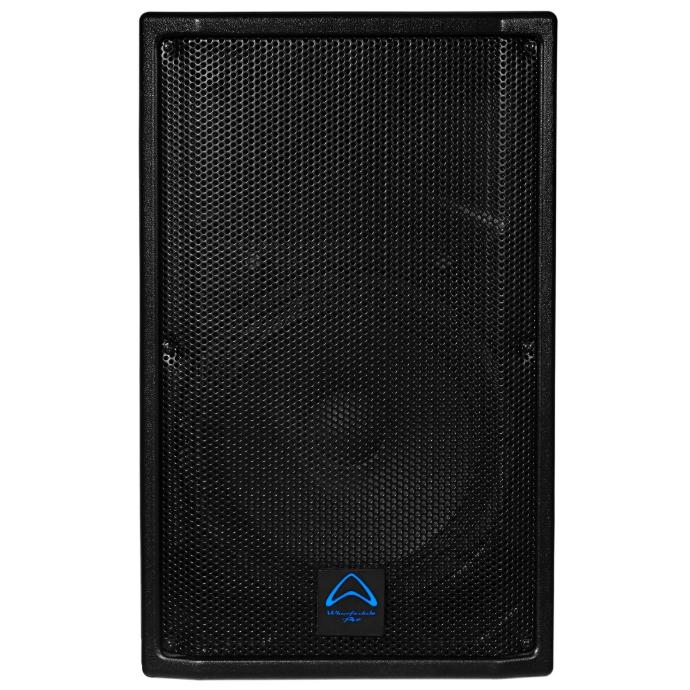

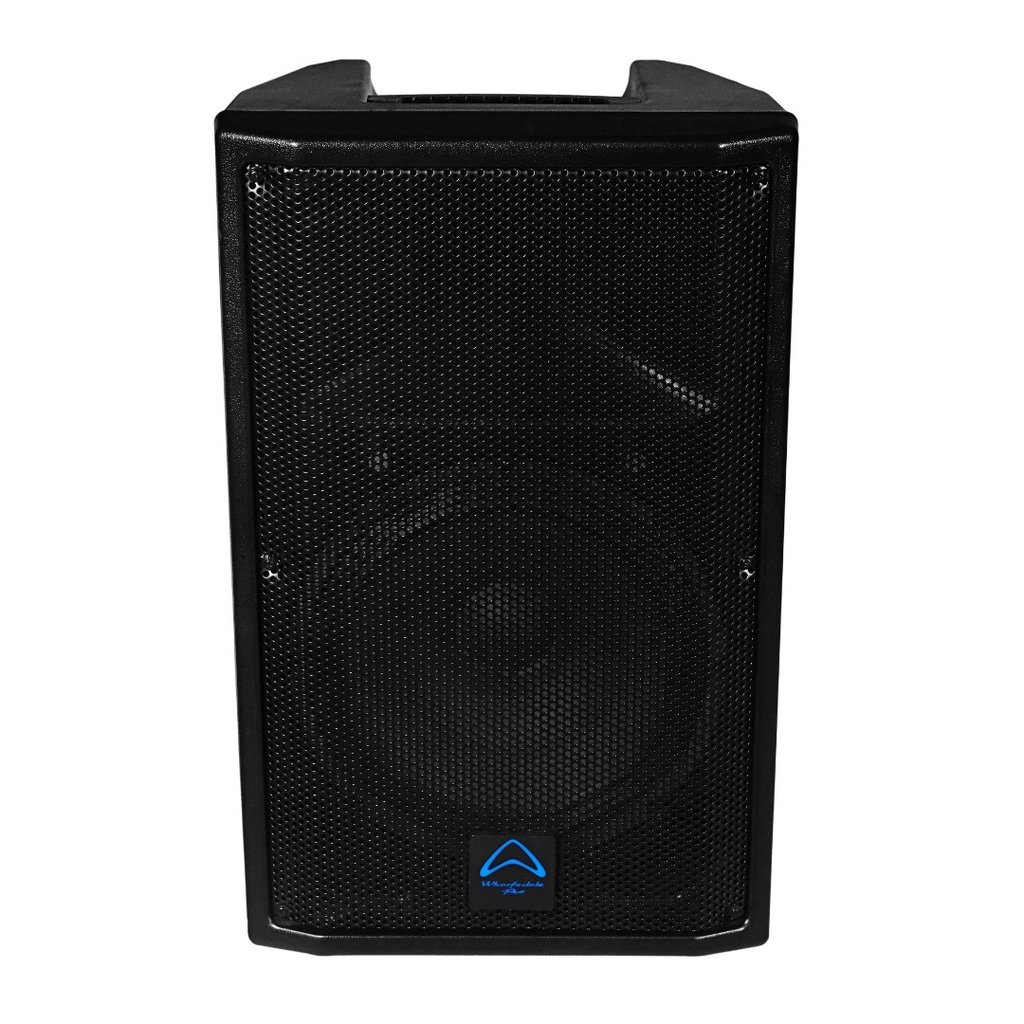

TOURUS-AX12 is a 12″ bi-amplified active loudspeaker from our TOURUS-AX Series — delivering powerful, full-range sound and exceptional value for performers, venues and installers alike.
Driven by a Class D amplifier for the LF driver and a Class AB stage for the HF compression driver, it produces 350 W continuous and 700 W peak power. A custom Wharfedale Pro 12″ driver pairs with a 1.75″ HF compression driver to deliver clear, defined highs and a warm, punchy low-end.
Built for flexibility and reliability, TOURUS-AX12 features a rugged ABS cabinet, full steel grille, multiple handles and 4 x M8 rigging points for safe installation or mobile use. With RCA, XLR and 6.3 mm jack inputs, it’s versatile enough for live performance, DJ setups or fixed sound systems — a portable powerhouse that sounds as good as it looks. Pair it with the T-SUB-AX15B for a perfectly matched low-frequency extension.
| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 350 W |
| System Peak Power | 700 W |
| Max SPL @ 1m | 128 dB |
| Freq Range (-10 dB) | 50 Hz - 20 kHz |
| Freq Response (+/-3 dB) | 55 Hz - 20 kHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| LF Voice Coil Size | 2" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 250 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1" |
| HF Power (RE:AES2-2012) | 50 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 60° |
| Input Connector | 2 x XLR, 2 x RCA, 1 x 6.3mm Jack |
| Waveguide Type | Constant Directivity |
| Enclosure Material | ABS |
| Grille Material and Finish | Steel Black |
| Finish | Black Polypropylene |
| Handles | 3 |

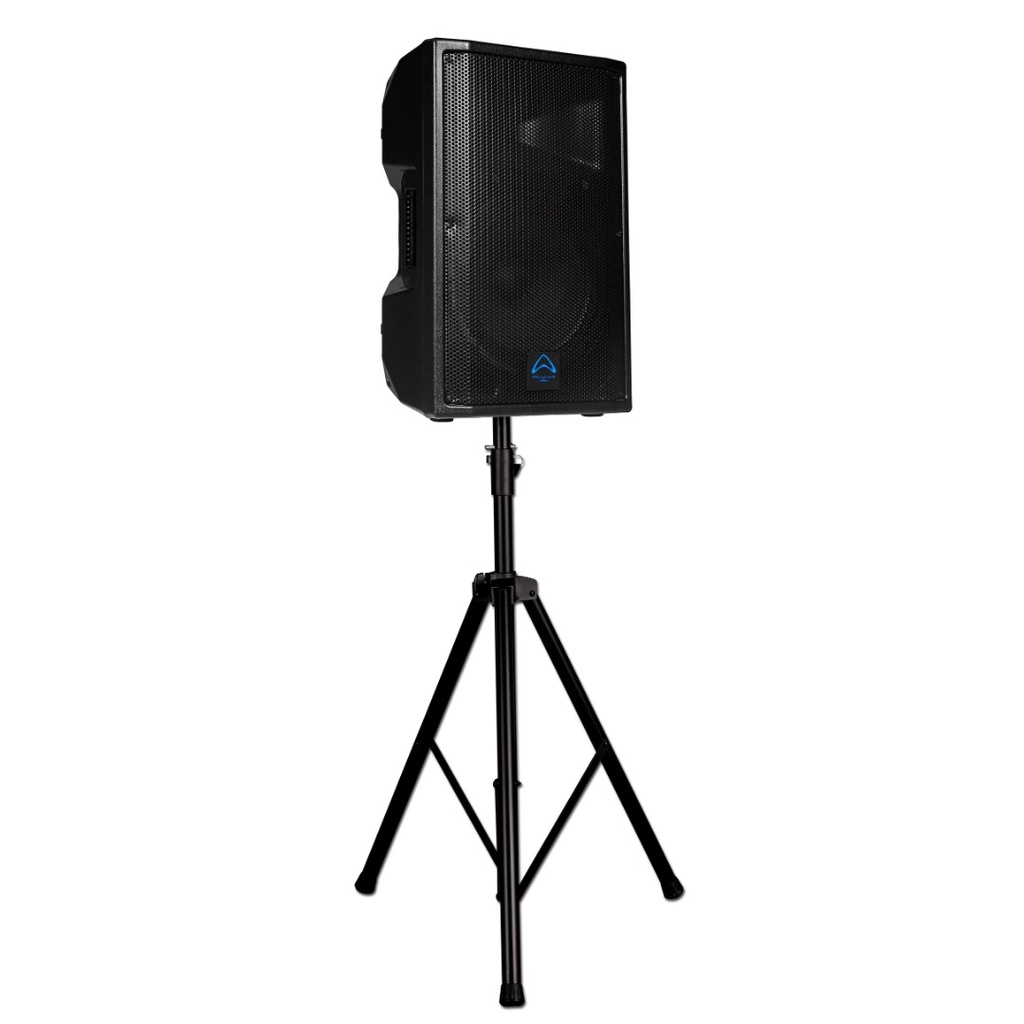

| Deployment | Flying, Ground, Pole |
| Pole Mount | 35 mm With Lock Screw |
| Rigging | Yes |
| M8 | 4 |
| Sensitivity 2.83v / 1m | 96 dB |
| System Rated Impedance | n/a |
| Crossover Frequency | HI PASS 2.5 kHz, LOW PASS 2.5 kHz |
| Recommended HPF = BW 18 dB/OCT. | 50 Hz |
| Amplifier design | HF Amp Class AB : LF Amp Class D |
| EQ Type | +/-12 dB Gain for bass and treble |
| Active loudspeaker Input Impedance | 47 KΩ Balanced |
| Link Connector | pin XLR |
| Max input level | 5 V |
| Line output | Pin XLR |
| Main Power | 100 V - 120 V and 220 V - 240 V |
| Power Supply | SMPS |
| Unpacked - Height (mm) | 603 |
| Unpacked - Width Front (mm) | 377 |
| Unpacked - Width Rear (mm) | 217 |
| Unpacked - Depth (mm) | 347 |
| Packed - Height (mm) | 666 |
| Packed - Width Front (mm) | 430 |
| Packed - Width Rear (mm) | 430 |
| Packed - Depth (mm) | 408 |
| Weight - Nett (kg) | 15 |
| Weight - Gross (kg) | 17 |
