TOURUS-AX8-MBT is an 8″ bi-amplified active loudspeaker from our TOURUS-AX Series — delivering impressive power, clarity and versatility in a compact, affordable design — now with integrated Bluetooth connectivity and USB input.

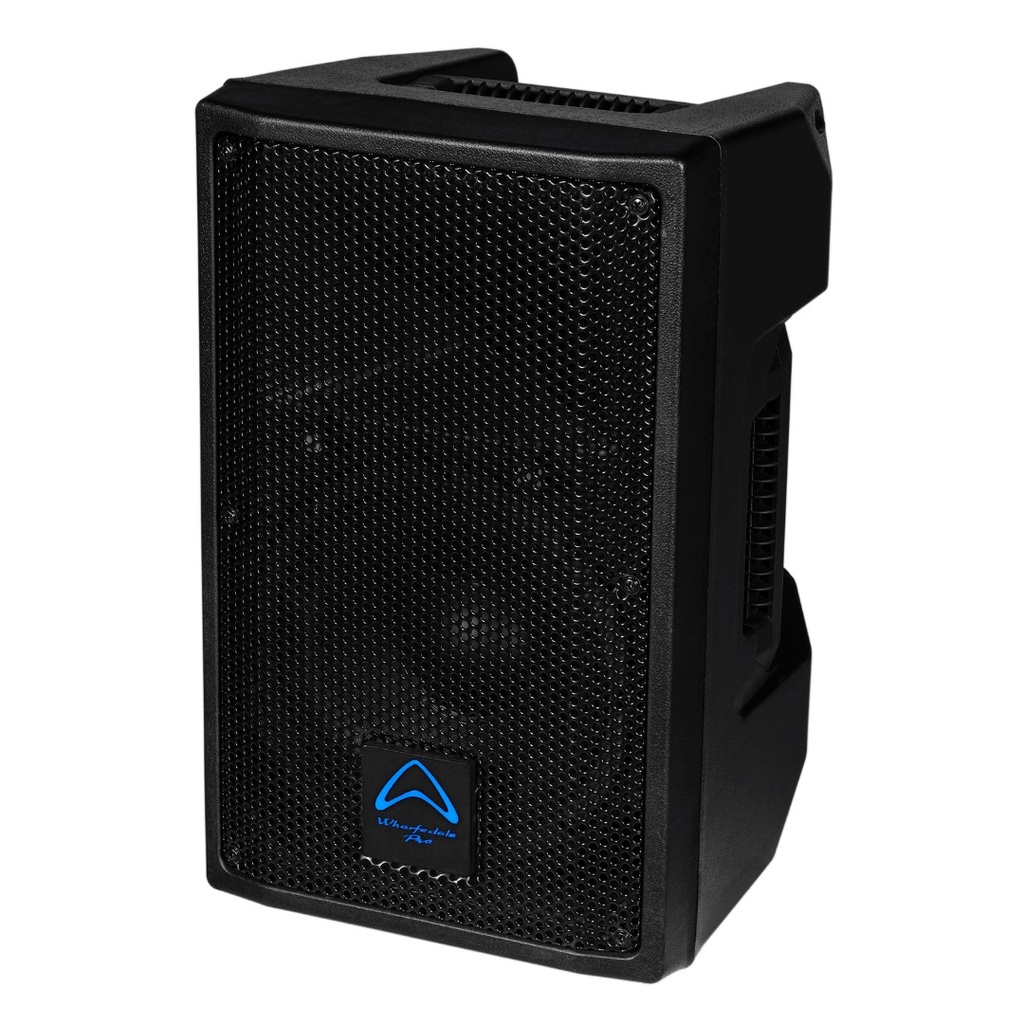

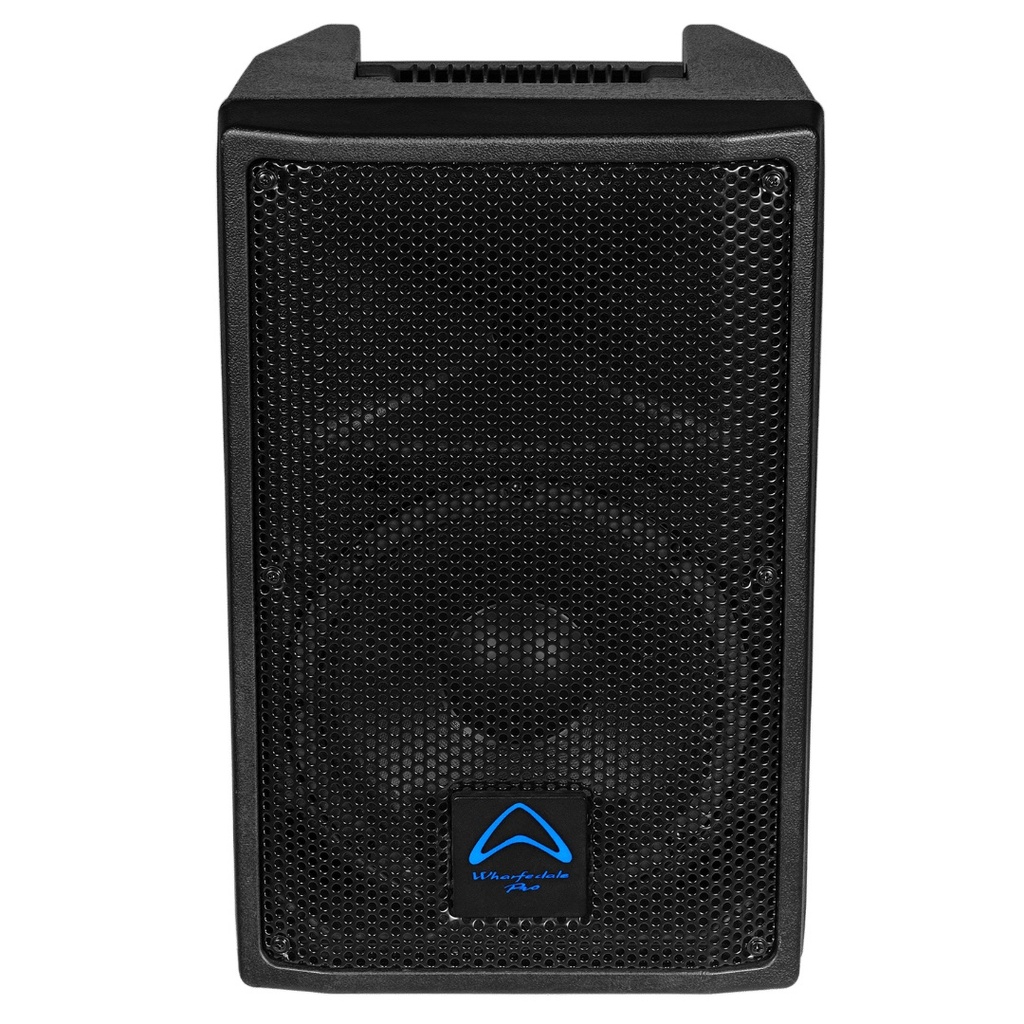

Driven by Class D amplifiers, it delivers 250 W continuous and 500 W peak power through a custom Wharfedale Pro driver system with a 1.75″ HF compression driver. The durable ABS cabinet includes multiple handles, 4 x M8 rigging points and a full steel grille for protection and easy installation.
Designed for on-stage performance, DJs, or fixed installations, TOURUS-AX8-MBT combines practicality and sound quality with reliability. With XLR, RCA, Bluetooth and 6.3 mm jack inputs, it offers flexible connectivity and is a perfect partner for a T-SUB-AX active subwoofer for extended low-end reinforcement.
| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 250 W |
| System Peak Power | 500 W |
| Max SPL @ 1m | 124 dB |
| Freq Range (-10 dB) | 60 Hz - 20 kHz |
| Freq Response (+/-3 dB) | 65 Hz - 20 kHz |
| Bluetooth | Yes |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 8" |
| LF Voice Coil Size | 1.53" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 150 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1" |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 60° |

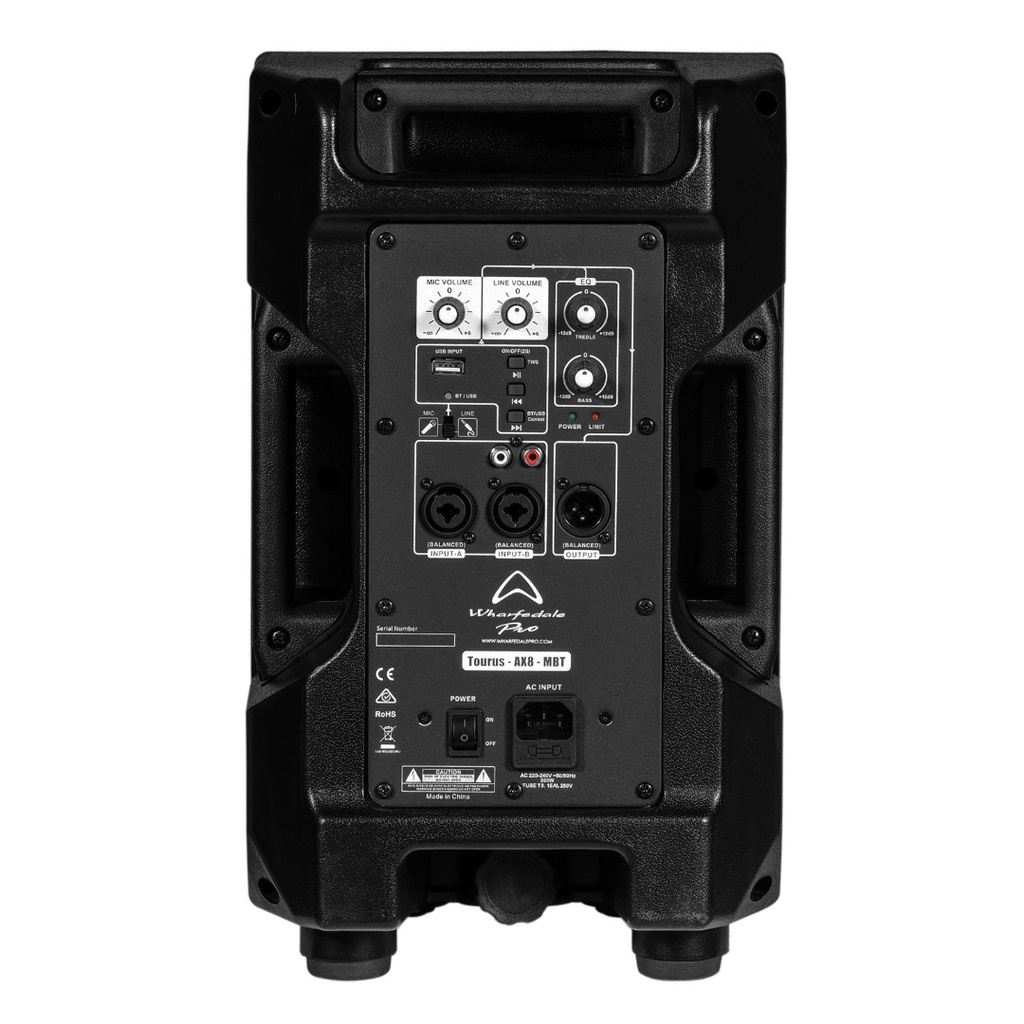

| Input Connector | 2 x 1/4” Jack / XLR Combo, 2 x RCA, USB, BT |
| Waveguide Type | Constant Directivity |
| Enclosure Material | ABS |
| Grille Material and Finish | Steel Black |
| Finish | Black Polypropylene |
| Handles | 3 |
| Deployment | Ground, Flying, Pole |
| Pole Mount | 35 mm With Lock Screw |
| Rigging | Yes |
| M8 | 4 |
| Sensitivity 2.83v / 1m | 95 dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.6 kHz |
| Recommended HPF = BW 18 dB/OCT. | 60 Hz |
| Amplifier design | Class D |
| EQ Type | +/-12 dB Gain for bass and treble |
| Active loudspeaker Input Impedance | 47 KΩ Balanced |
| Link Connector | pin XLR |
| Max input level | 5 V |
| Line output | Pin XLR |
| Main Power | 100 V - 120 V and 220 V - 240 V |
| Power Supply | SMPS |
| Unpacked - Height (mm) | 421 |
| Unpacked - Width Front (mm) | 259 |
| Unpacked - Width Rear (mm) | 172 |
| Unpacked - Depth (mm) | 263 |
| Packed - Height (mm) | 470 |
| Packed - Width Front (mm) | 315 |
| Packed - Width Rear (mm) | 315 |
| Packed - Depth (mm) | 307 |
| Weight - Nett (kg) | 8 |
| Weight - Gross (kg) | 9.2 |
