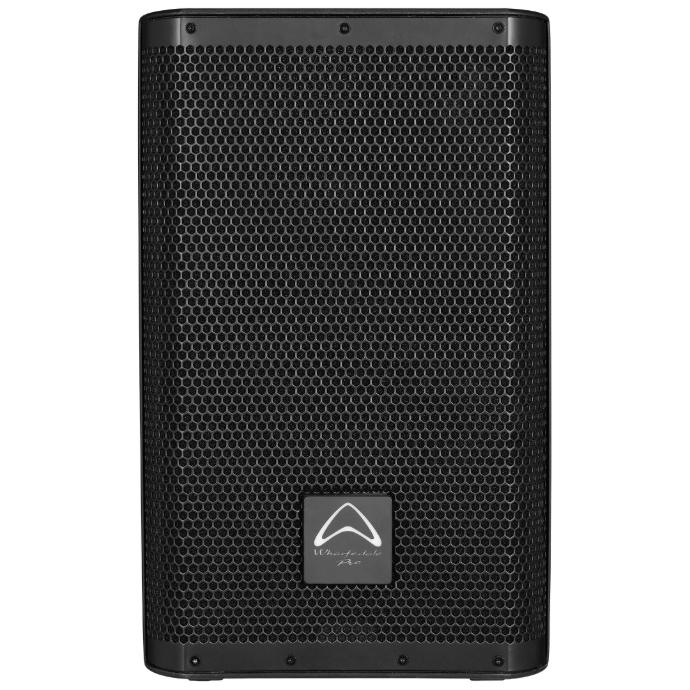

TOURUS+ A10 is a 10″ active loudspeaker from our TOURUS+ Active Series — offering the perfect balance of power, portability and professional performance for a wide range of live and installed sound applications.
Powered by a Class D bi-amplified system, it delivers 320 W continuous and 640 W peak output with a maximum SPL of 125 dB at 1 m. Its custom Wharfedale Pro 10″ LF driver with a 2.5″ voice coil delivers tight, controlled bass, while integrated DSP with four FIR presets (NORMAL, LIVE, DJ, SPEECH) ensures optimal performance in any environment. Bluetooth and TWS connectivity allow for convenient wireless playback and stereo pairing.
Built within a rugged polypropylene cabinet with dual-angle pole sockets (0° and 3°), multiple rigging points and a 45° monitor angle, TOURUS+ A10 is equally suited for stage use, floor monitoring or fixed installation. Compact, flexible and robust — a true multi-purpose loudspeaker. Pair it with a T-SUB-AX active sub for perfectly matched low-frequency extension.
| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 320 W |
| System Peak Power | 640 W |
| Max SPL @ 1m | 125 dB |
| Freq Range (-10 dB) | 55 Hz - 20 kHz |
| Freq Response (+/-3 dB) | 63 Hz - 20 kHz |
| Bluetooth | Yes |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 10" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 280 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.33" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1.37" |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 60° |

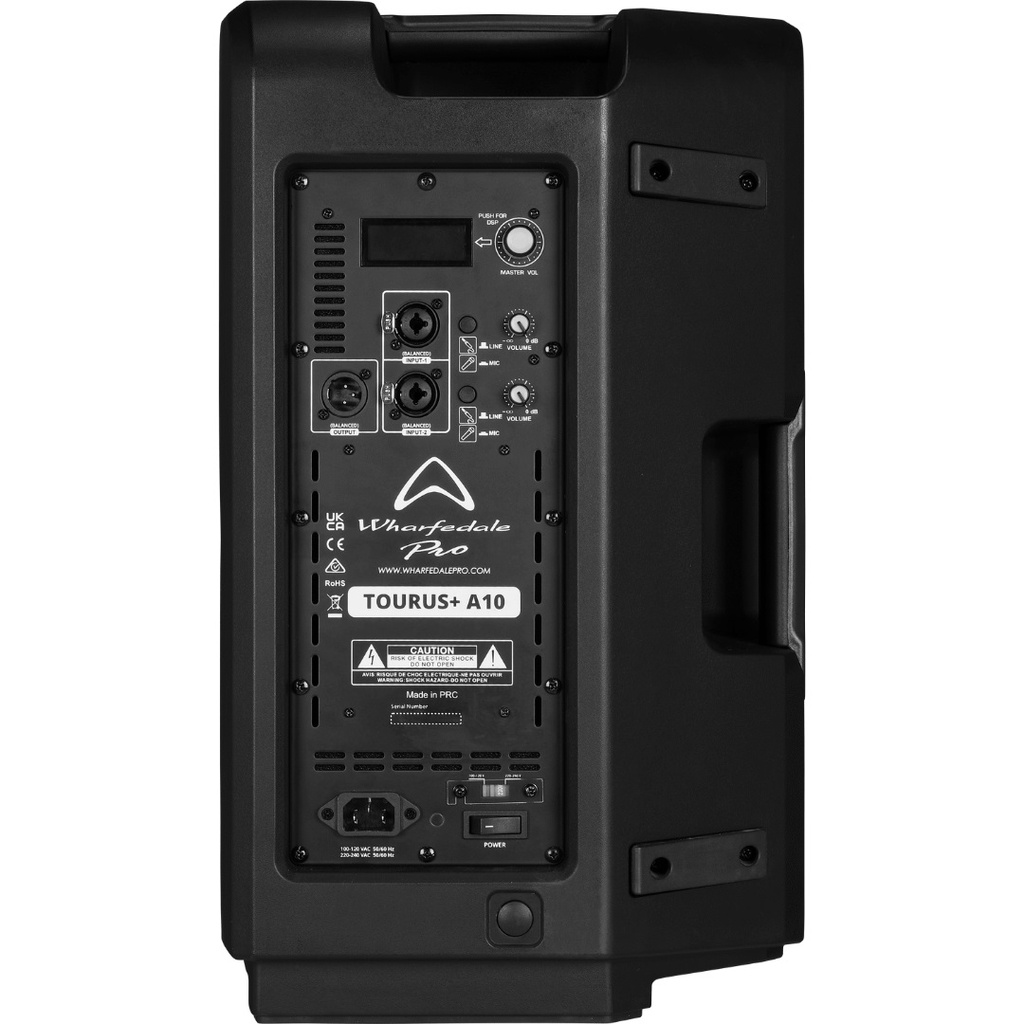

| Input Connector | 2 x 1/4” Jack / XLR Combo |
| Waveguide Type | Constant Directivity |
| Enclosure Material | Polypropylene |
| Grille Material and Finish | Steel Black |
| Finish | Black Polypropylene |
| Handles | 2 |
| Deployment | Ground, Flying, Pole, Wall Mount |
| Pole Mount | Dual Angle (0° / -3°) 35 mm |
| Rigging | Yes |
| M8 | 5 |
| Sensitivity 2.83v / 1m | n/a dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.0 kHz |
| Recommended HPF = BW 18 dB/OCT. | 55 Hz |
| Amplifier design | Class D |
| DSP Controls | Normal / Live / DJ / Speech |
| Preset list | Normal / Live / DJ / Speech |
| Active loudspeaker Input Impedance | 10 KΩ Balanced |
| Link Connector | pin XLR |
| Input sensitivity | +4 dBu |
| Max input level | +18 dBu |
| Line output | Pin XLR |
| 240 V AC W (1/8 rated output power) | 99 |
| 120 V AC W (1/8 rated output power) | 99 |
| Idle W | 20 |
| Main Power | 100-120 V~/220-240 V~,50/60 Hz |
| Power Supply | SMPS |
| Unpacked - Height (mm) | 528 |
| Unpacked - Width Front (mm) | 320 |
| Unpacked - Width Rear (mm) | 179 |
| Unpacked - Depth (mm) | 300 |
| Packed - Height (mm) | 582 |
| Packed - Width Front (mm) | 367 |
| Packed - Width Rear (mm) | 367 |
| Packed - Depth (mm) | 342 |
| Weight - Nett (kg) | 12.6 |
| Weight - Gross (kg) | 13.7 |
