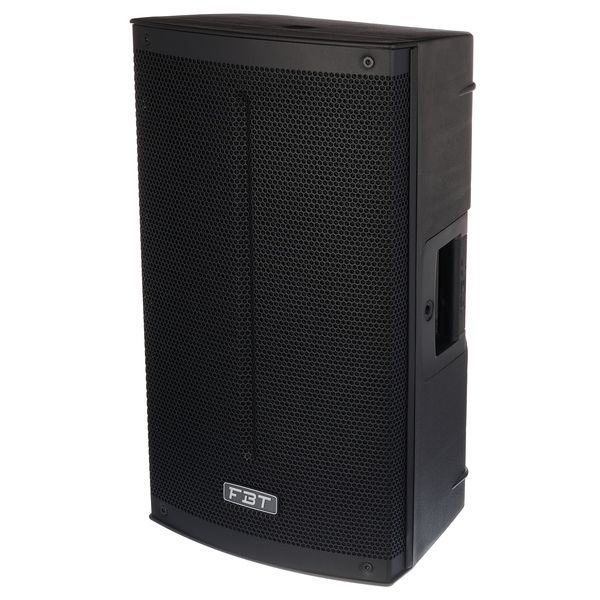

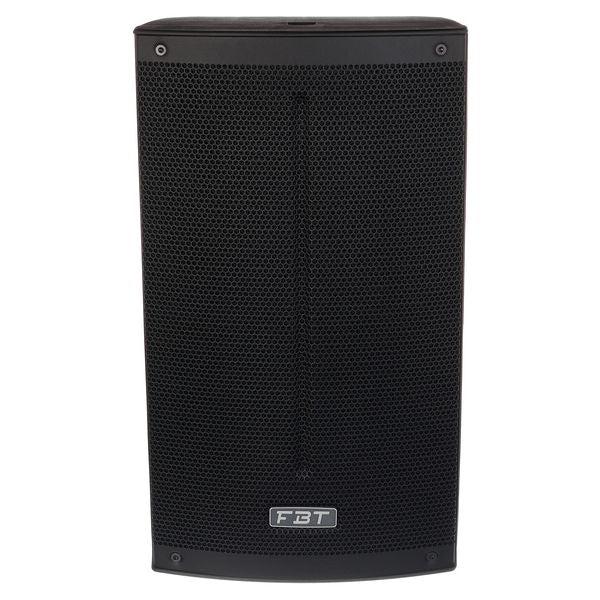

The FBT X-LITE 110 is a compact 10" passive 2-way speaker that mirrors the acoustic design of the active X-LITE 110A but with full freedom of amplifier choice. Lightweight and versatile, it is equally suited to portable systems, fixed installations, and monitor applications.
- 10" woofer + 1" compression driver — clear, natural sound reproduction
- 90° × 60° constant directivity horn — predictable, even coverage
- Recommended amplifier: 350W — pairs well with the FBT AX 800 or AX 1200
- 124 dB peak SPL — compact speaker with serious output
- 8 Ω nominal impedance — straightforward amplifier matching
- Asymmetric design — 30° / 45° monitor floor angles
- Dual Neutrik NL4 Speakon connectors — professional, secure signal connection

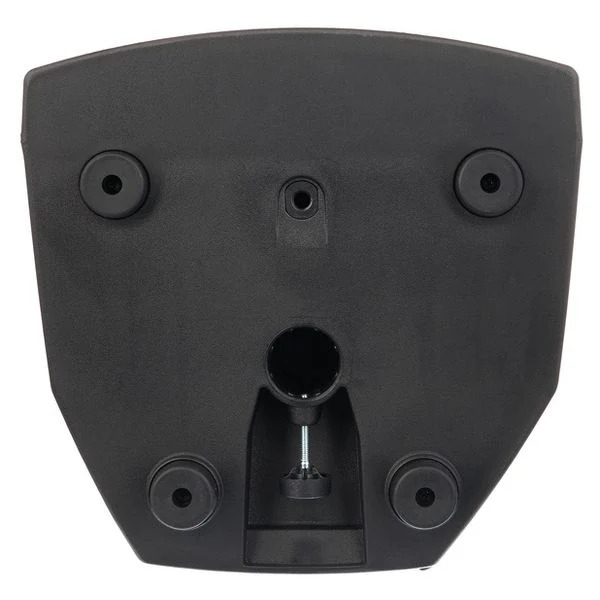

- 4 × M10 rigging points + 35 mm pole socket — multiple mounting options
- Gas-injected polypropylene cabinet — lightweight and impact resistant
Recommended pairing: FBT AX series amplifiers. Compatible accessories: XL-C 10 (nylon cover), XL-UH 10 (horizontal bracket), XL-UV 10 (vertical bracket).
| Configuration | 2-way passive |
|---|---|
| LF Driver | 10" woofer, 2.5" voice coil |
| HF Driver | 1" compression driver, 1.4" voice coil |
| Recommended Amplifier Power | 350W |
| Long Term Power Handling | 175W |
| Short Term Power Handling | 700W |
| Nominal Impedance | 8 Ω |
| Frequency Response | 65 Hz – 20 kHz (–6 dB) |
| Sensitivity (1W / 1m) | 96 dB |
| Maximum SPL (cont / peak) | 121 / 124 dB |
| Dispersion (H × V) | 90° × 60° |
| Crossover Frequency | 2 kHz |
| Recommended HP Filter | 55 Hz, 12/24 dB/oct |
| Input Connectors | 2 × Neutrik NL4 Speakon |
| Cabinet Material | Gas-injected polypropylene, steel grille |
| Net Dimensions (W × H × D) | 293 × 536 × 300 mm |
| Net Weight | 12.8 kg |
