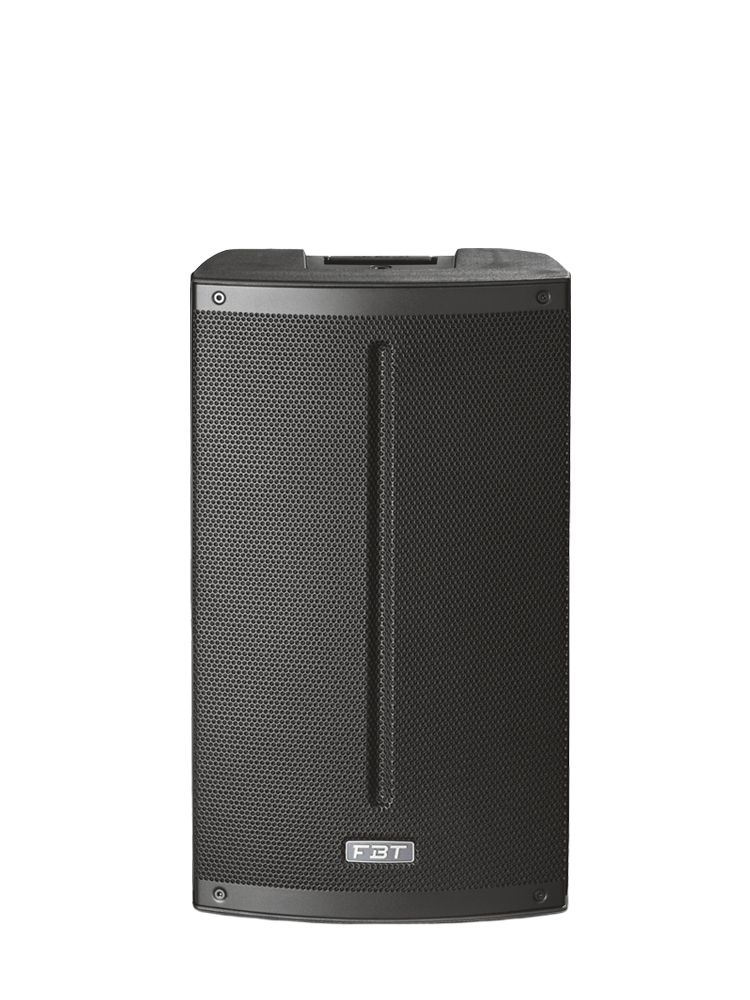

The FBT X-LITE 112 is a passive 12" 2-way speaker in the lightweight X-LITE polypropylene cabinet. It gives professionals the flexibility to drive it with their preferred amplifier while benefiting from FBT's proven cabinet acoustics and driver engineering. Well suited to both portable PA and permanent installation.
- 12" woofer + 1" compression driver — balanced, full-range performance
- 90° × 60° constant directivity horn — consistent dispersion across the listening area
- Recommended amplifier: 400W — matches perfectly with FBT AX series amplifiers
- 126.5 dB peak SPL — substantial output from a passive cabinet
- 8 Ω nominal impedance — easy amplifier integration
- Asymmetric enclosure — 30° / 45° monitor angles built in
- Dual Neutrik NL4 Speakon connectors — secure, industry-standard cabling
- 4 × M10 rigging points + 35 mm pole socket — stand, rigged, or wall mounted
- Gas-injected polypropylene cabinet — rugged yet lightweight
Recommended pairing: FBT AX series amplifiers. Compatible accessories: XL-C 12 (nylon cover), XL-UH 12 (horizontal bracket), XL-UV 12 (vertical bracket).
| Configuration | 2-way passive |
|---|---|
| LF Driver | 12" woofer, 2.5" voice coil |
| HF Driver | 1" compression driver, 1.4" voice coil |
| Recommended Amplifier Power | 400W |
| Long Term Power Handling | 200W |
| Short Term Power Handling | 800W |
| Nominal Impedance | 8 Ω |
| Frequency Response | 55 Hz – 20 kHz (–6 dB) |
| Sensitivity (1W / 1m) | 97 dB |
| Maximum SPL (cont / peak) | 123.5 / 126.5 dB |
| Dispersion (H × V) | 90° × 60° |
| Crossover Frequency | 1.8 kHz |
| Recommended HP Filter | 45 Hz, 12/24 dB/oct |
| Input Connectors | 2 × Neutrik NL4 Speakon |
| Cabinet Material | Gas-injected polypropylene, steel grille |
| Net Dimensions (W × H × D) | 352 × 619 × 356 mm |
| Net Weight | 15.2 kg |
